Softmax Regression with TensorFlow

October 24, 2018

A vast majority of us got initiated into programming through the typical “Hello World.” program where you just learn to print the phrase “Hello World.” onto the terminal. Like programming, machine learning too has a “Hello World.” program and it is called MNIST. The MNIST (Modified National Institute of Standards and Technology) data set contains 70,000 images of hand written digits along with labels which tell us which image corresponds to which number. The numbers range from 0 to 9. In this tutorial, we are going to train a model to look at images and predict what digits they are. The prediction is going to be a probability rather than a definitive prediction of class and to do that we will be using softmax regression.

The MNIST data set is hosted on Yann LeCun’s website. The dataset contains 70,000 images as mentioned earlier and it’s split into 55,000 data points of training data, 10,000 points of test data and 5,000 points of validation data. Every MNIST data point has two parts to it, an image of the handwritten digit and a corresponding label. In our model, the images are going to the “x” and the labels, “y”. Both the training and the testing data set contains images and their corresponding labels. Each image is 28 pixel by 28 pixels and we can interpret the images as a big array of numbers. We can flatten this array into a vector of 784 numbers (28 x 28). You should note that flattening the array will result in the loss of information about the 2D structure of the images. Each number in the vector is a pixel intensity value between 0 and 1 (something like 0.4, 0.9 and 0.7). As mentioned earlier, each image in MNIST has a corresponding label between 0 and 9 and we would want our labels to be one-hot vectors. A one-hot vector is a vector which is 0 in most dimensions, and 1 in a single dimension. So if the label corresponding to an image is 3, the one-hot vector is going to be [0, 0, 0, 1, 0, 0, 0, 0, 0, 0] and if the label is 0 the one-hot vector is [1, 0, 0, 0, 0, 0, 0, 0, 0, 0]. Basically, the value of the label corresponds to the index of 1 in the vector.

As mentioned earlier, we want our model to give us probabilities instead of definitive predictions so we use softmax regression. Softmax gives us a list of probability values between 0 and 1 that adds up to 1. Our softmax regression model has two steps: first, we add up the evidence of our input being in certain classes, and then we convert that evidence into probabilities. To tally up the evidence that a given image is in a particular class, we do a weighted sum of the pixel intensities. We also add some extra evidence called a bias to the weighted sum of pixel intensities. Biases basically make certain evidence independent of the input, so even if the weighted sum is 0, you still have some evidence that the image belongs/does not belong to a certain class. The result is that the evidence for a class i given an input x is:

\[\text { evidence }_{i}=\sum_{j} W_{i, j} x_{j}+b_{i}\]

where Wi is the weights and bi is the bias for class i, and j is an index for summing over the pixels in our input image x. We then convert the evidence tallies into our predicted probabilities, y using the softmax function:

\[y=\operatorname{softmax}(\text {evidence})\]

Here softmax is serving as an activation function, shaping the output of our linear function into the form we want - in this case, a probability distribution over 10 classes and it is defined as:

\[\operatorname{softmax}(x)=\text {normalize}(\exp (x))\]

Expanding the equation, we get:

\[\operatorname{softmax}(x)_{i}=\frac{\exp \left(x_{i}\right)}{\sum_{j} \exp \left(x_{j}\right)}\]

Our softmax regression model can be pictured as looking something like the following, but with a lot more xs.

In summary, our model can be written as:

\[y=\operatorname{softmax}(W x+b)\]

Visualizing the above equation in terms of vectors, we get:

Now that we have defined our entire model in mathematical terms, let’s start coding.

Implementing the Softmax Regression Model

First we need to import TensorFlow.

import tensorflow as tf

Now we need to obtain the MNIST dataset. Thankfully, TensorFlow has an inbuilt function which allows us to get the MNIST data set, extract it and use it, they have even split the dataset for us so we don’t have to do it ourselves.

from tensorflow.examples.tutorials.mnist import input_data

# Download and extract the MNIST data set, convert to one-hot
mnist = input_data.read_data_sets("MNIST_data/", one_hot=True)

Here we download our data and convert the labels to a one-hot vector. Now let’s reserve a place for our images.

# MNIST images, each flattened into a 784-dimensional vector
x = tf.placeholder(tf.float32, [None, 784])

x is a placeholder, a value that we’ll input when we ask TensorFlow to run a computation. We want to be able to input any number of MNIST images, each flattened into a 784-dimensional vector. We represent this as a 2-D Tensor of floating-point numbers, with a shape [None, 784]. x is of shape [None, 784] and we will be feeding in images in batches so None here is able to support any batch size that we specify. Now we need our weights and biases. Like in the linear regression model example, weights and biases will be like our m and c, they will be variables whose values will be constantly updated as we train the model. Let’s declare weights and biases in our code as variables.

# Weights
W = tf.Variable(tf.zeros([784, 10]))
# Biases
b = tf.Variable(tf.zeros([10]))

Our weights, W and biases, b will be Tensors full of 0s with a shape of [784, 10] and [10] respectively. Notice that W has a shape of [784, 10] because we want to matrix multiply the 784-dimensional image vectors with it to produce 10-dimensional vectors of evidence for the different classes of labels. b has a shape of [10] so we can add it to the result of the matrix multiplication. Now let us define our model.

# Model
y = tf.nn.softmax(tf.add(tf.matmul(x, W), b))

The code above is just following the equation of our model that we defined earlier. I prefer to use tf.add to add two Tensors together, adding them using the regular + would also work. Like our linear regression model we also need to define a loss/cost function and for this model, we will be using a very common loss function called cross-entropy. Cross-entropy is defined as:

\[H_{y^{\prime}}(y)=-\sum_{i} y_{i}^{\prime} \log \left(y_{i}\right)\]

Where y is our predicted probability distribution, and y′ is the true distribution (the one-hot vector with the digit labels). In some rough sense, the cross-entropy is measuring how inefficient our predictions are for describing the truth. We use cross-entropy to calculate loss because, once we get our inputs, we matrix multiply it with the weights and add the biases to them and obtain logits. We then feed the logits, which are scores into the softmax function to obtain probabilities. To calculate loss we need to compare these probabilities with the one-hot encoded vector labels and to do that we use cross-entropy to convert those probabilities into one-hot encoded vectors. To implement cross-entropy we need to first add a new placeholder to input the correct answers:

# Actual label
y_ = tf.placeholder(tf.float32, [None, 10])

Then we can implement the cross-entropy function:

# Cross-entropy
cross_entropy = tf.reduce_mean(tf.nn.softmax_cross_entropy_with_logits(labels=y_, logits=y))

In the above code, tf.reduce_mean computes the mean over all the examples in the batch. tf.nn.softmax_cross_entropy_with_logits computes cross-entropy where y_ is the label and y is the logit. Now let’s implement the gradient descent optimization algorithm to modify the variables and reduce loss:

train_step = tf.train.GradientDescentOptimizer(0.5).minimize(cross_entropy)

In this case, we ask TensorFlow to minimize cross_entropy using the gradient descent algorithm with a learning rate of 0.5. Gradient descent is a simple procedure, where TensorFlow simply shifts each variable a little bit in the direction that reduces the cost. More explanation can be found in the linear regression tutorial. Now let’s launch our model in a Session and create an operation to initialize the variables we created.

# Launch model in interactive session
sess = tf.Session()
# Initialize variables

Now let’s train our model, for 1000 epochs.

# Train model for 1000 epochs
for _ in range(1000):
    # Batch of 100 random training data points
    batch_xs, batch_ys = mnist.train.next_batch(100), feed_dict={x: batch_xs, y_: batch_ys})

Each step of the loop, we get a “batch” of one hundred random data points from our training set. We run train_step feeding in the batches data to replace the placeholders. Using small batches of random data is called stochastic training - in this case, stochastic gradient descent. Now that we have trained our model, we need to find out how well our model performs. To do that we first need to find out where we predicted the correct label. Our softmax function gives us a list of probabilities that add up to 1 across 10 classes and our labels are one-hot encoded vectors and equating them together to find accuracy is not going to work. The better way is to get the index of the highest value in both vectors (the output vector of our softmax function and the labels) and see if they are equal. To do this, we use the following code:

# Check if index of highest values match between the tensors
correct_prediction = tf.equal(tf.argmax(y,1), tf.argmax(y_,1))

tf.argmax is an extremely useful function which gives us the index of the highest entry in a Tensor along some axis. Then we use tf.equal to see if the indices match. This would give us a list of booleans. To determine what fraction are correct, we cast to floating point numbers and then take the mean. For example, [True, False, True, True] would become [1,0,1,1] which would become 0.75.

# Cast booleans to floats
accuracy = tf.reduce_mean(tf.cast(correct_prediction, tf.float32))

Finally, we check the accuracy of our model using our test data, data that we didn’t train the model to recognise.

# Check accuracy on test data
result =, feed_dict={x: mnist.test.images, y_: mnist.test.labels})
# Print float as percentage
print("{0:f}%".format(result * 100))

Running the above code should give you an accuracy close to about 92.0%. In our next tutorial, we will be increasing the accuracy of our model close to about 99.0%.

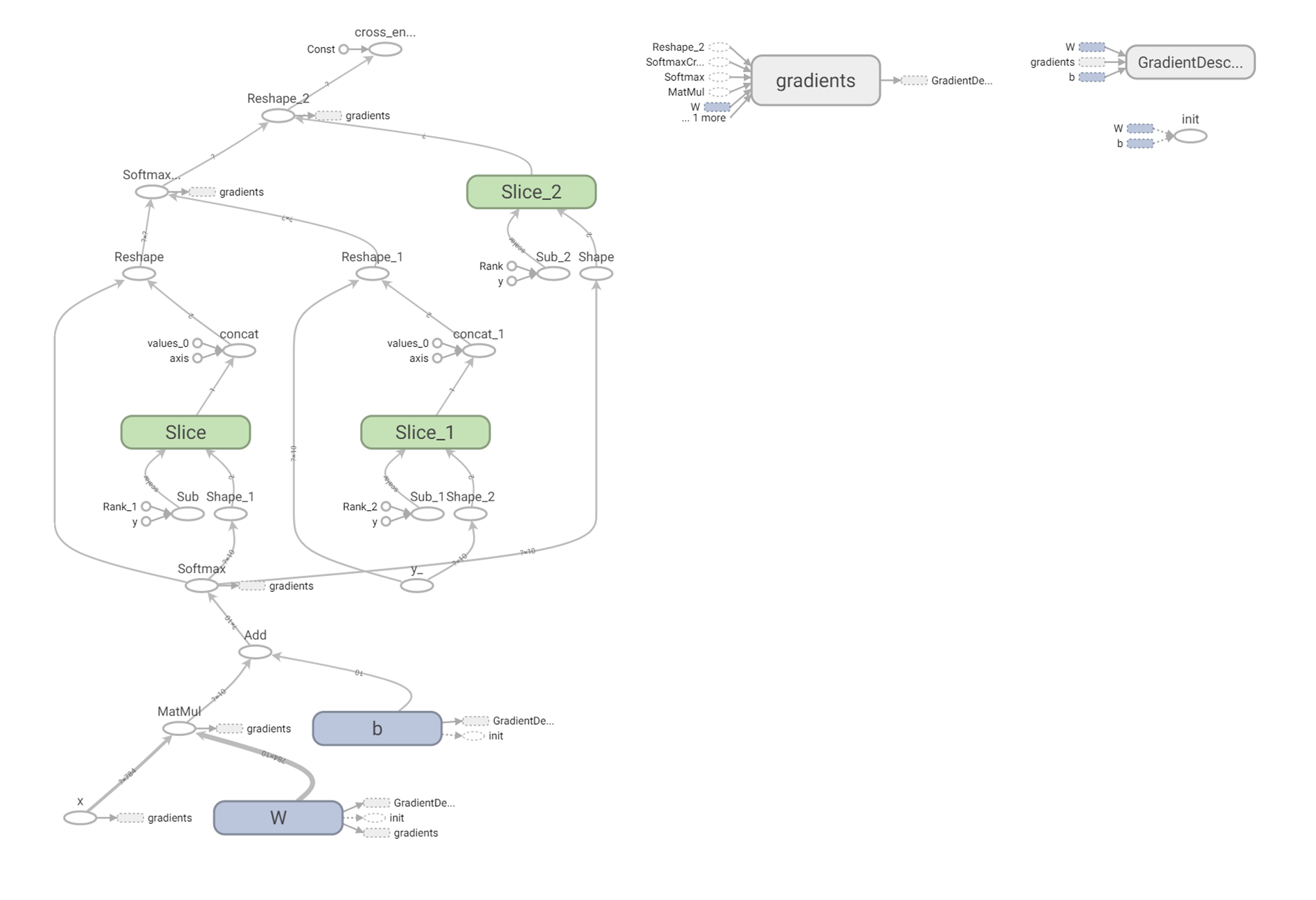

Using TensorBoard we get the following graph of our model.

TensorBoard graph of our softmax regression model.
